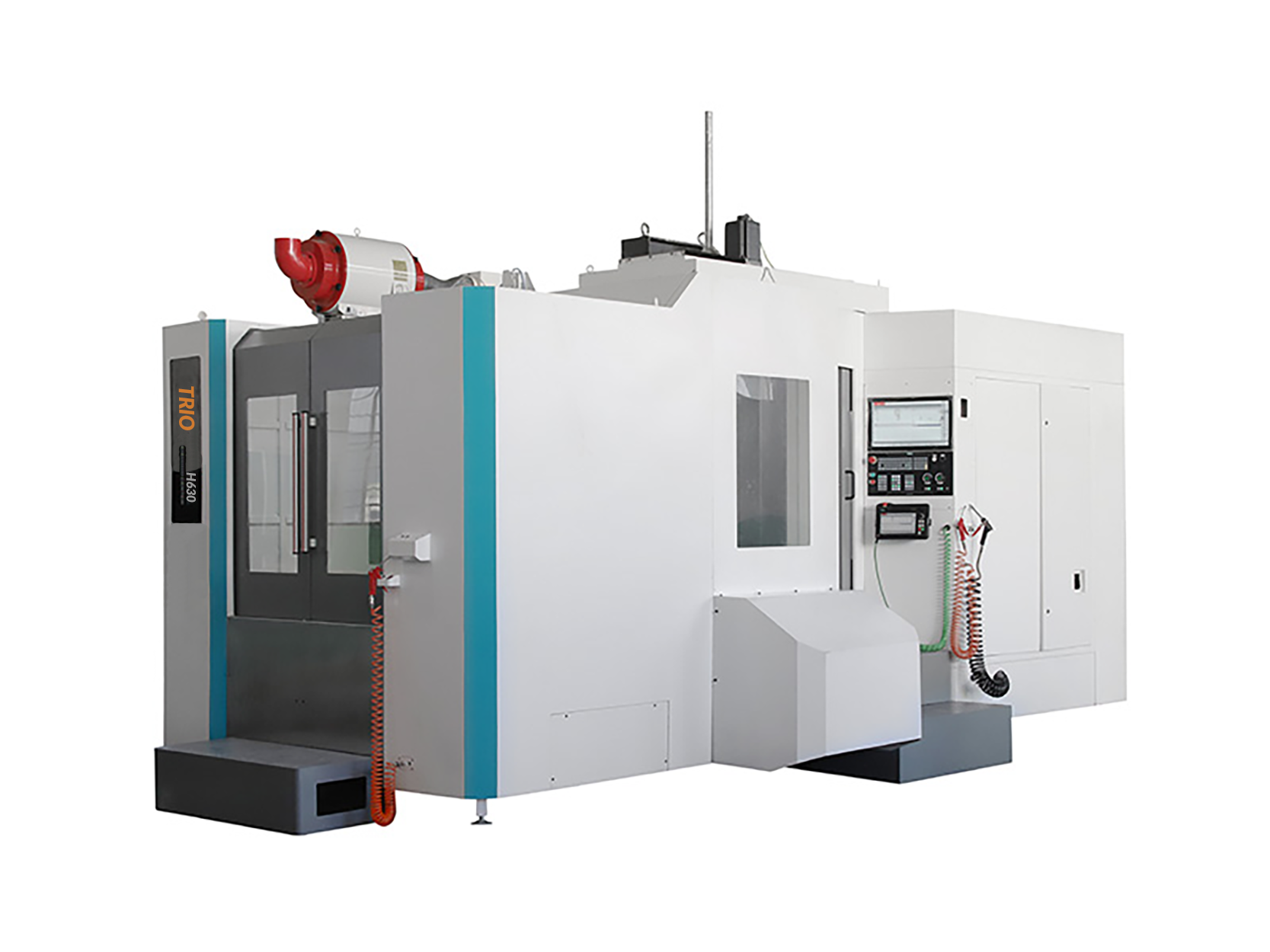

| Item | Unit | H630 |
| Travel | ||
| X travel | mm | 1050 |
| Y travel | mm | 750 |
| Z travel | mm | 900 |
| Distance from table center to spindle nose | mm | 130-1030 |
| Distance from spindle centerline to table surface | mm | 120-870 |
| Work table | ||
| Table size | mm | 630×630 |
| Max. table load | kg | 1000 |
| T-slot（number×width×spacing） | mm | 5×18×100 |
| Table number | pc | 1 |
| Spindle system | ||
| Spindle drive mode | belt | |
| Taper bore of spindle | BT50 | |
| Spindle Max.speed | rpm | 6000 |
| Spindle motor power | kw | 15/18.5 |
| Spindle rated torque | Nm | 143 |
| Feed system | ||
| X/Y/Zaxis rapid feed rate | m/min | 24/24/24 |
| X/Y/Z/B axis motor torque | Nm | 36/36/36/12 |
| X/Y/Z axis rail width | mm | 45/45/55 |
| X/Y/Z axis lead screw specification | mm | 4012/4012/5012 |
| Tool magazine system | ||
| Tool magazine capacity | pcs | 40 |
| Tool magazine type | chain | |
| Max. tool Dia. (adjacent/adjacent space) | mm | Ф125/Ф230 |
| Max. tool length | mm | 400 |
| Max. tool weight | kg | 18 |
| Accuracy | ||
| X/Y/Z repeat positioning accuracy | mm | 0.006/0.006/0.006 |
| X/Y/Z positioning accuracy | mm | 0.008/0.008/0.008 |
| B axis repeat positioning accuracy | Sec. | 4 |
| B axis positioning accuracy | Sec. | 10 |
| Table Min.indexing angle | Deg. | 1 |
| Others | ||
| CNC system | FANUC 0i MF(5) | |
| Machine weight | kg | 12000 |
